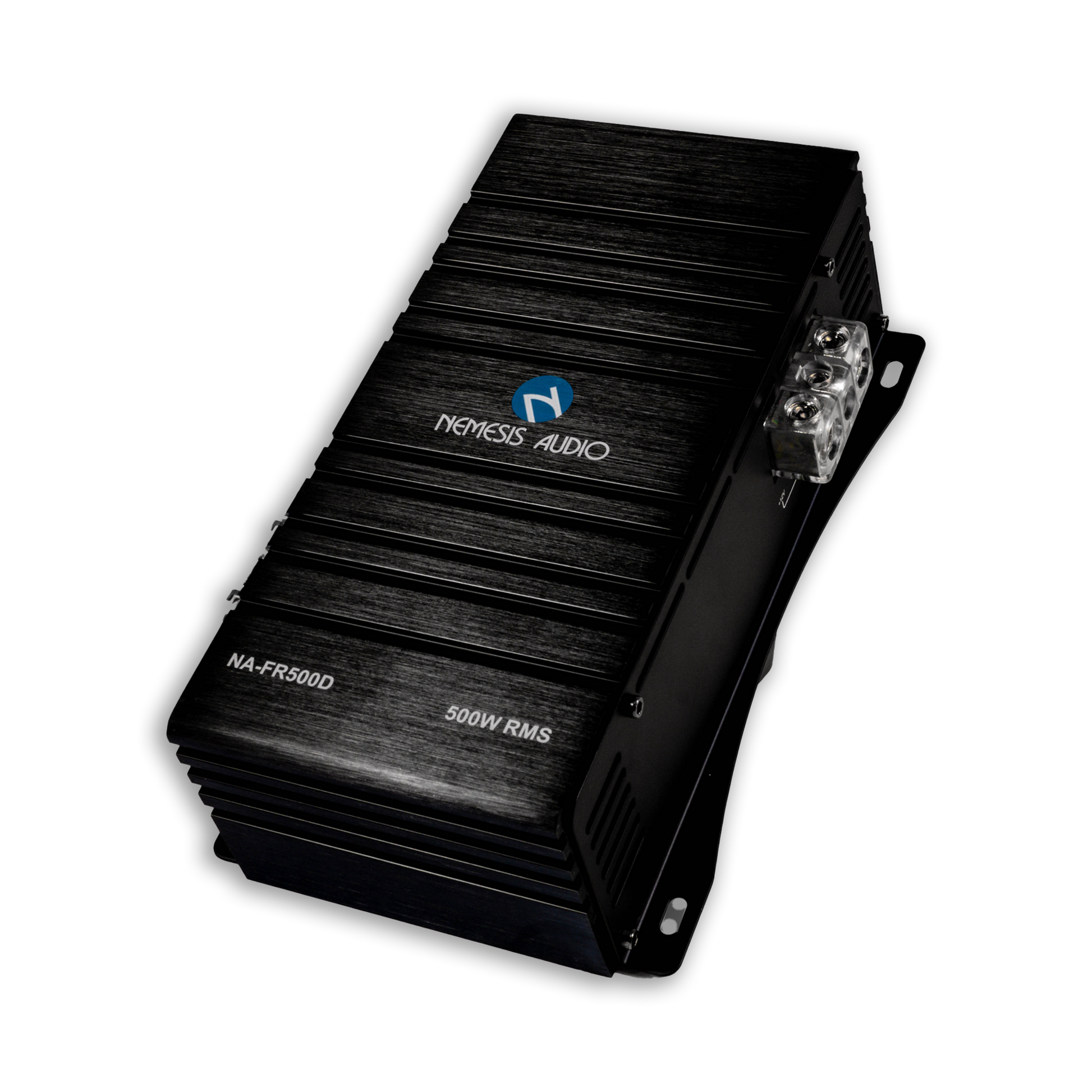

The Nemesis Audio NA-FR500D is a compact 1-channel full-range Class D amplifier for specialty speaker systems, pro audio drivers, and full-range builds that need clean power from a single channel. It can also serve as a small subwoofer amplifier when the system calls for 1-ohm output.
Use it for compact car audio builds, mids/highs specialty channels, or a budget full-range monoblock setup.
500W RMS at 1 ohm
250W RMS at 2 ohms
200W RMS at 4 ohms
1-channel full-range Class D design
Input sensitivity: 200mV
Signal-to-noise ratio: 100dB
Frequency response: 10Hz to 20kHz
High pass filter: 15Hz to 80Hz variable
Low pass filter: 80Hz to 20kHz variable
Bass boost: 0-12dB at 50Hz
Protection for output short, high/low supply voltage, and thermal conditions
Supply voltage range: 9V to 16V
A practical choice for shoppers searching for a 500W RMS full-range amplifier, 1-channel speaker amp, compact monoblock amplifier, or budget car audio amplifier.
