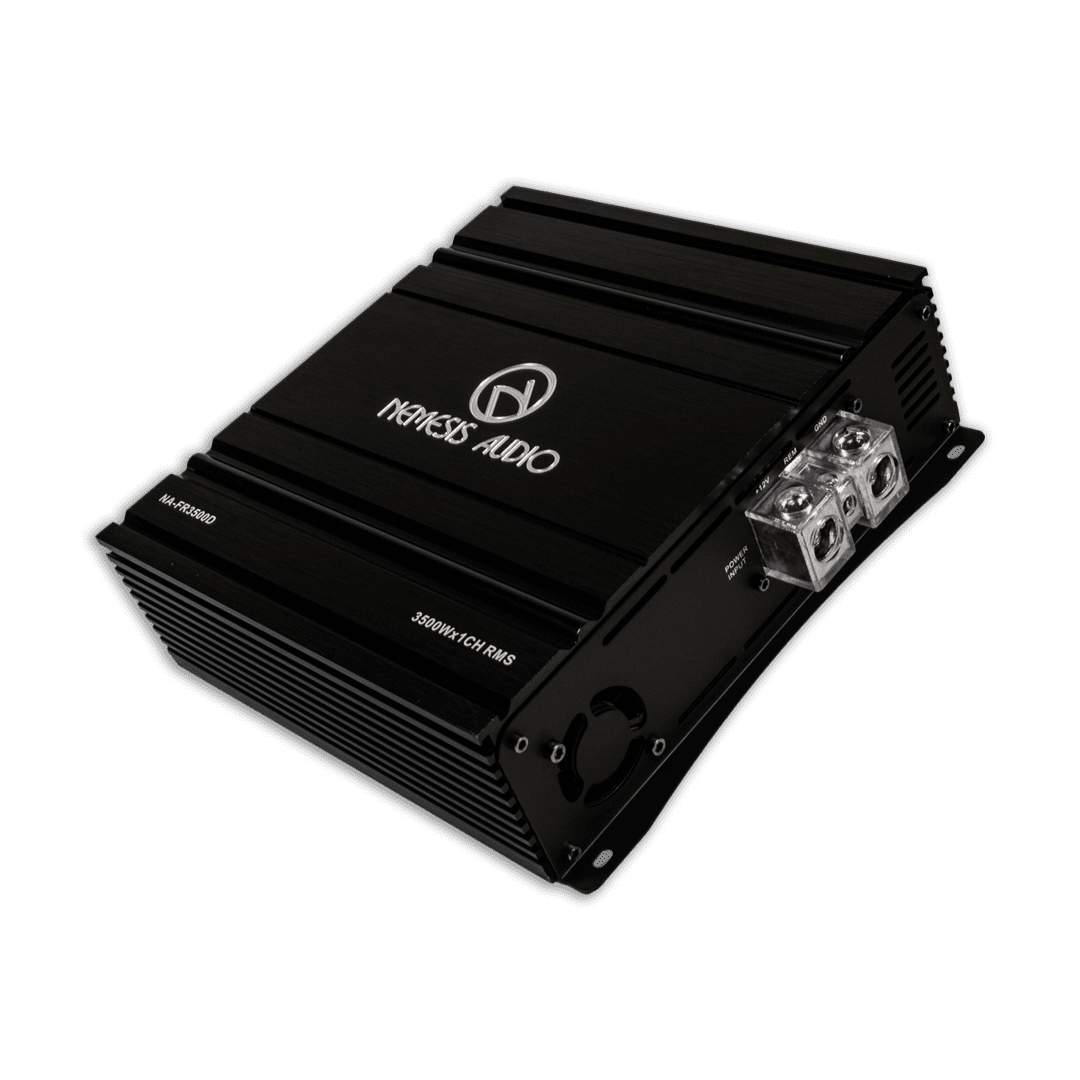

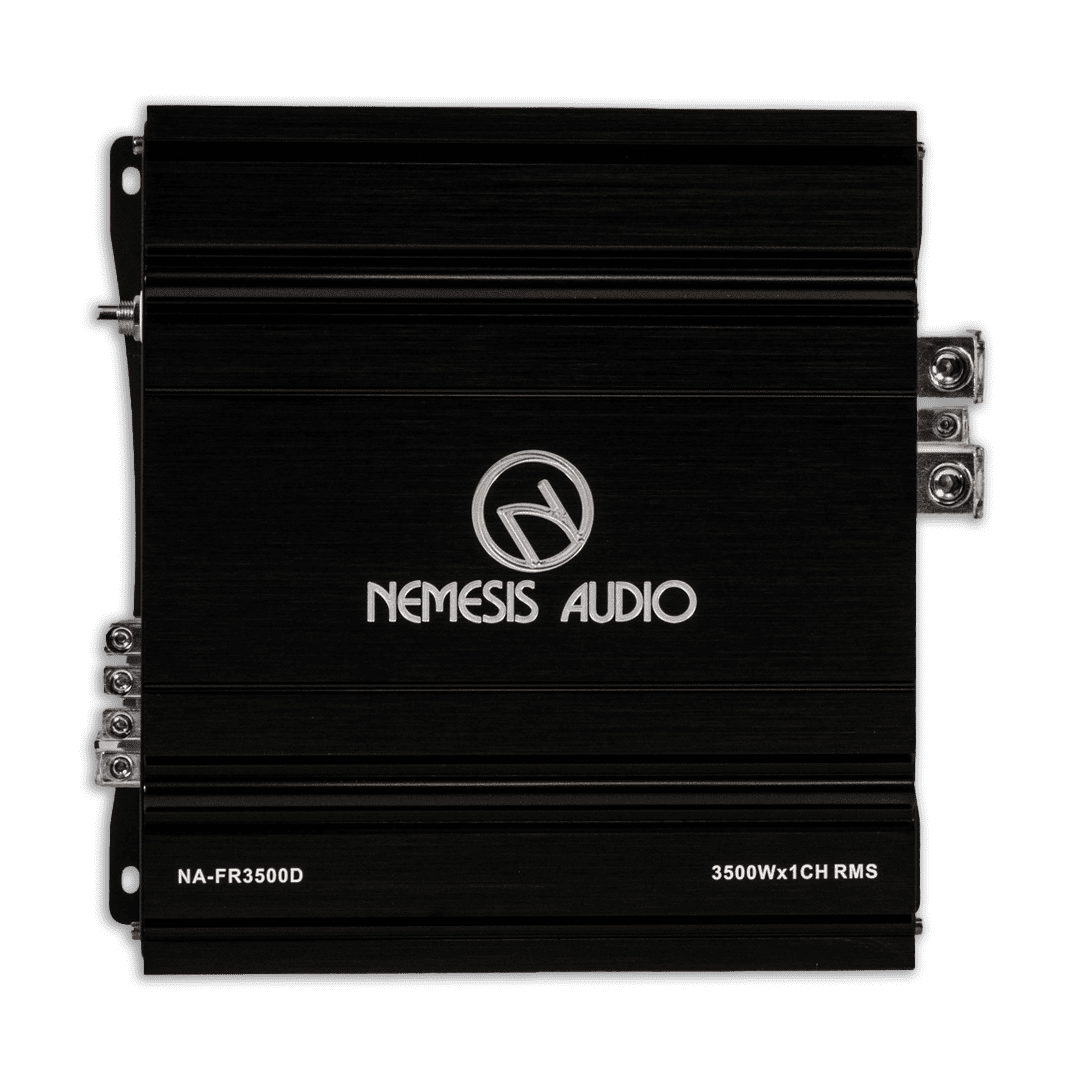

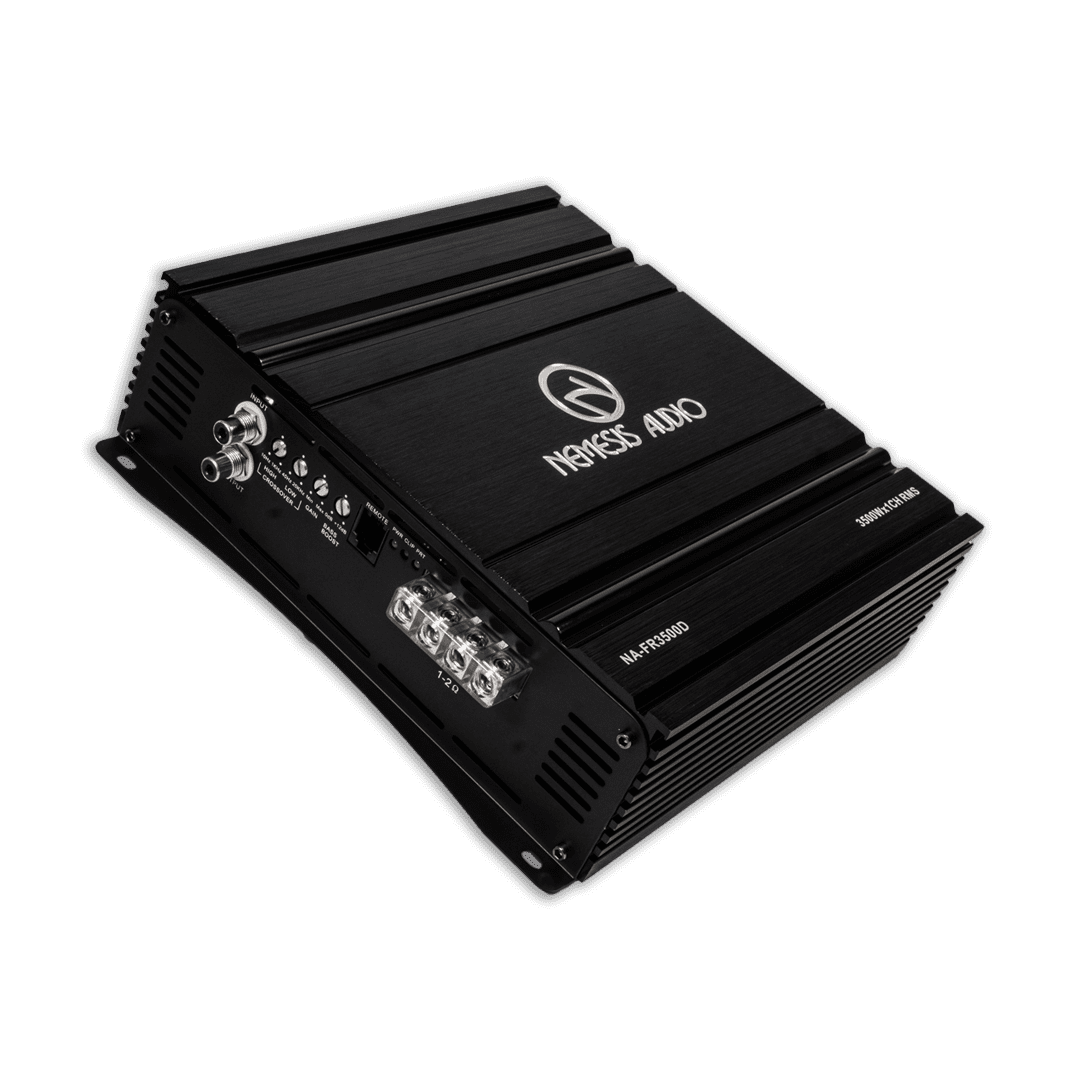

The Nemesis Audio NA-FR3500D is a 1-channel full-range Class D amplifier for high-output car audio systems that need serious power beyond a traditional subwoofer-only amp. It can be used in advanced builds where a full-range monoblock is needed for loud speakers, pro audio setups, or specialty system designs.
Use it for custom truck audio, pro audio drivers, specialty mids/highs channels, or powerful full-range monoblock applications.
3500W RMS at 1 ohm
3250W RMS at 2 ohms
3000W RMS at 4 ohms
1-channel full-range Class D amplifier
Frequency response: 10Hz to 20kHz
Input sensitivity: 200mV
Signal-to-noise ratio: 100dB
High pass filter: 10Hz to 1kHz variable
Low pass filter: 40Hz to 20kHz variable
Bass boost: 0-12dB at 50Hz
Output short, high/low voltage, and thermal protection
Operating voltage range: 9V to 16V
A serious option for shoppers searching for a 3500W RMS full-range amplifier, high-output speaker amplifier, 1-ohm full-range amp, or pro audio car amplifier.
