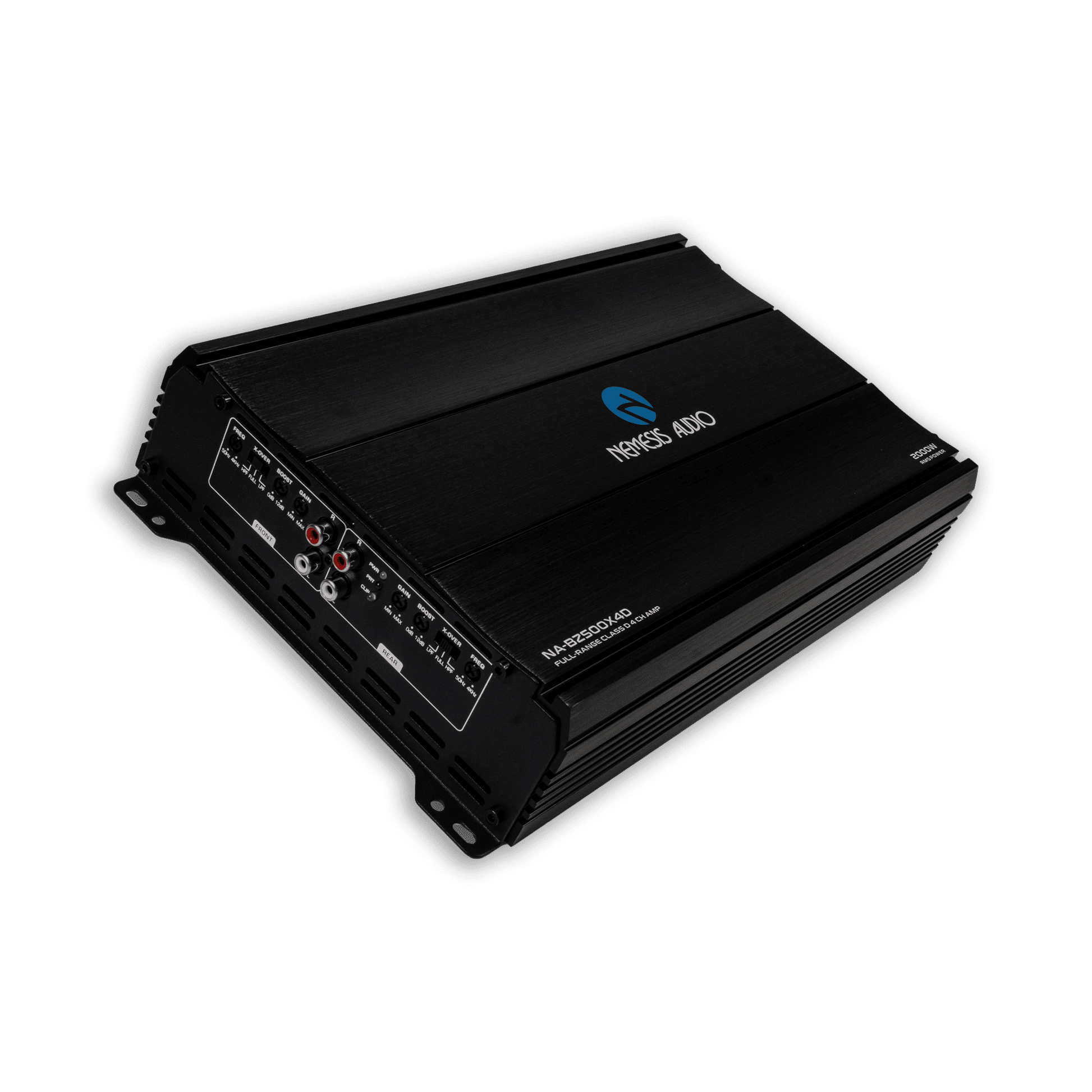

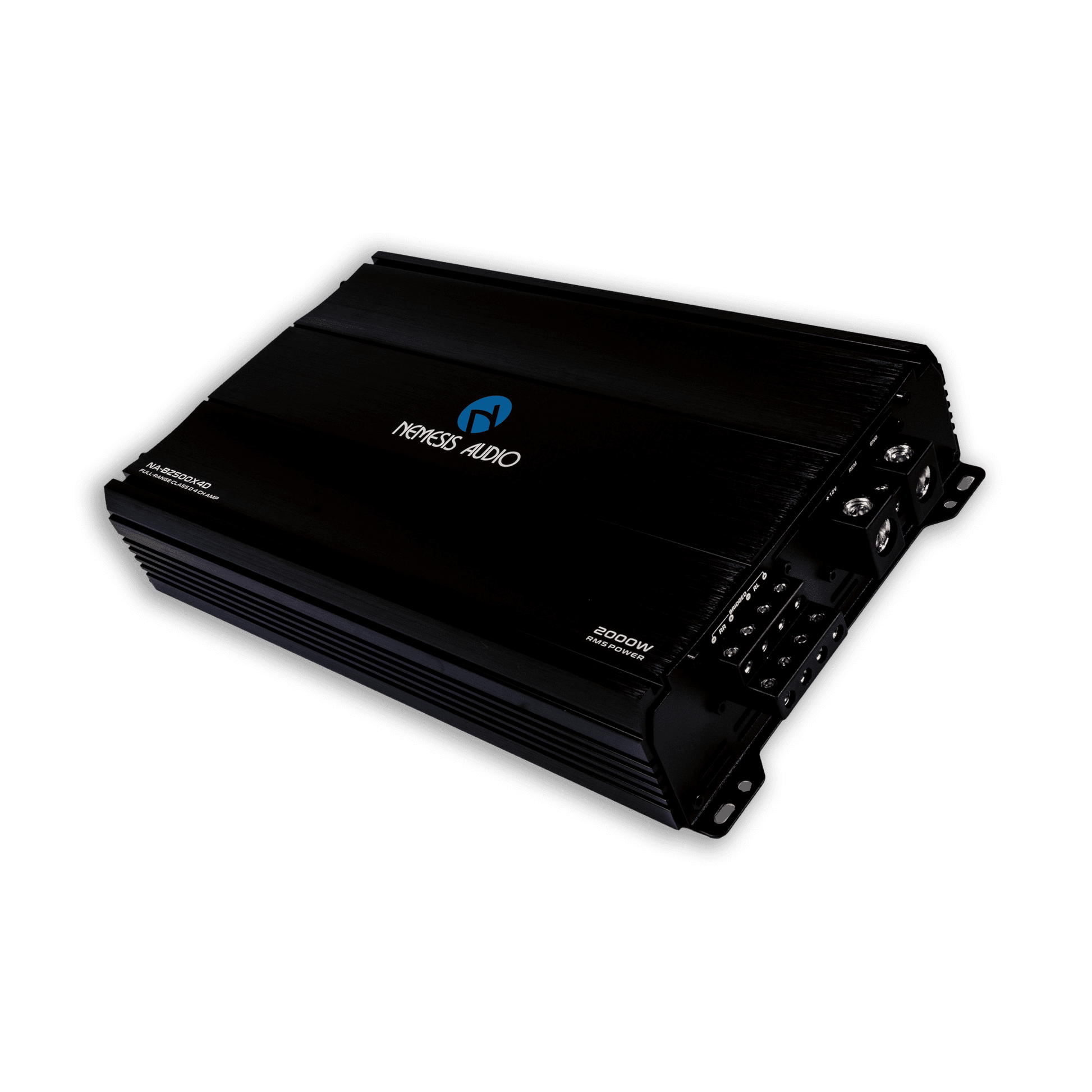

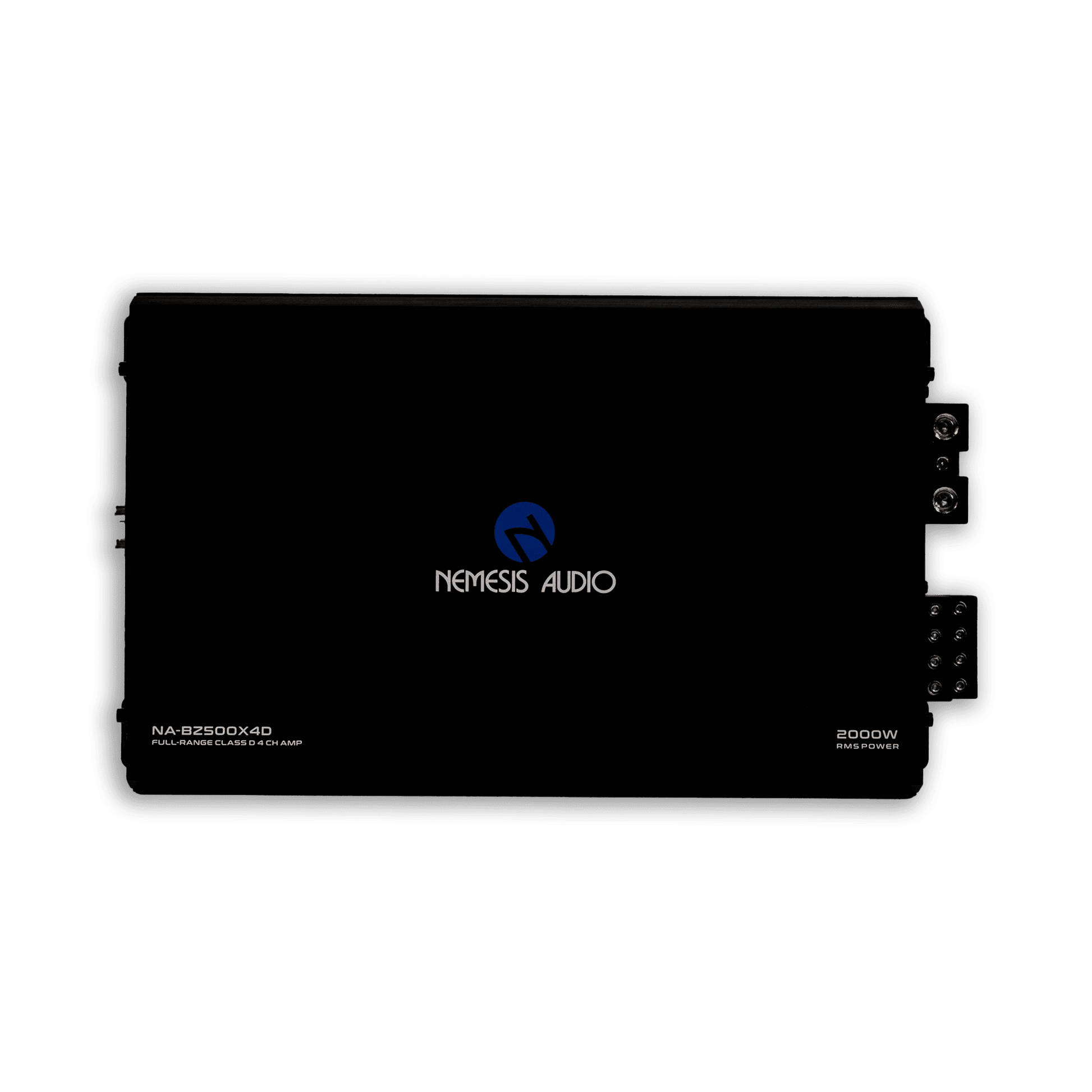

The Nemesis Audio NA-BZ500X4D is a Brazil Series 4-channel full-range amplifier for high-output speaker builds. It is made for loud door speakers, midrange speakers, tweeters, horn drivers, and pro audio systems that need strong power and flexible crossover control.
This is a serious mids and highs amplifier for custom car audio and truck audio builds, especially when the system needs strong 2-ohm output or bridged power.
Brazil Series 4-channel full-range Class D amplifier
RMS power at 4 ohms: 300W x 4 channels
RMS power at 2 ohms: 550W x 4 channels
Bridged power at 4 ohms: 1000W x 2 channels
2-ohm stable operation
High pass filter: 50Hz to 4kHz
Low pass filter: 50Hz to 4kHz
Bass boost: 0-12dB
Frequency response: 20Hz to 20kHz
Signal-to-noise ratio: 80dB
Total harmonic distortion at 4 ohms: 0.08%
Operating voltage: 9V to 16V
Fuse rating: 180A
Dimensions: 13.03 in x 8.35 in x 2.56 in
A strong choice for shoppers searching for a Brazil 4-channel amplifier, high-output mids and highs amp, horn driver amplifier, or bridged speaker amplifier.
