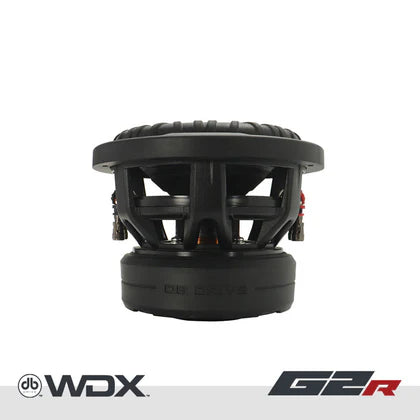

  • DB Drive WDX8G2R.4 8" Dual 4-Ohm Subwoofer 750W RMS image 1

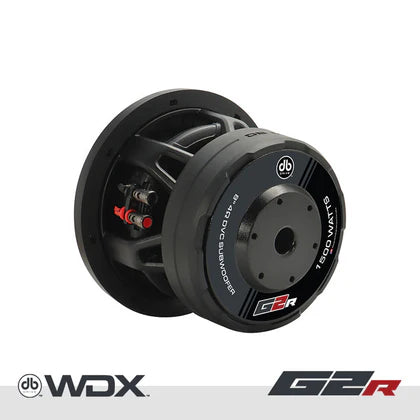

  • DB Drive WDX8G2R.4 8" Dual 4-Ohm Subwoofer 750W RMS image 2

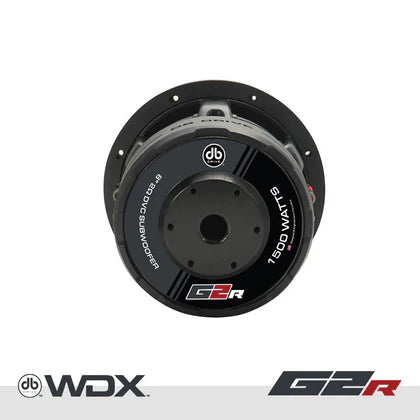

  • DB Drive WDX8G2R.4 8" Dual 4-Ohm Subwoofer 750W RMS image 3

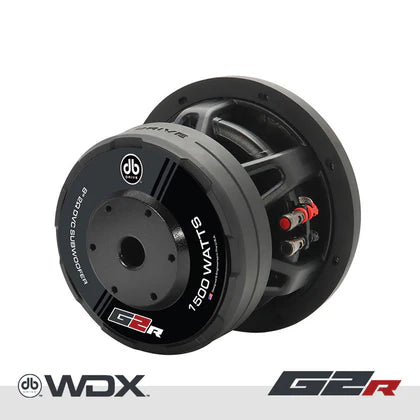

  • DB Drive WDX8G2R.4 8" Dual 4-Ohm Subwoofer 750W RMS image 4

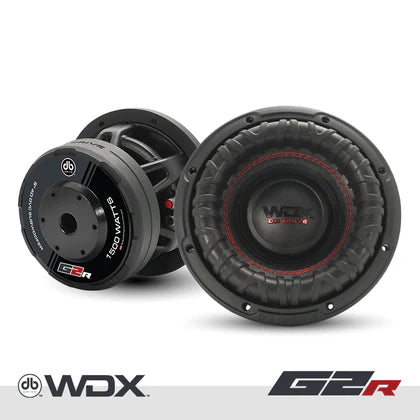

  • DB Drive WDX8G2R.4 8" Dual 4-Ohm Subwoofer 750W RMS image 5

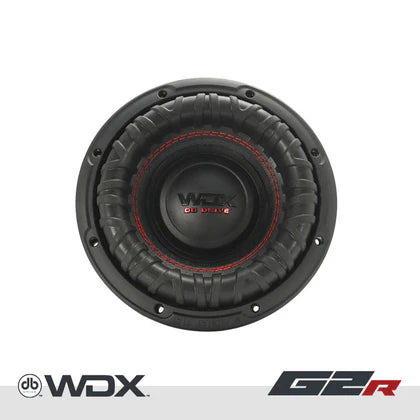

  • DB Drive WDX8G2R.4 8" Dual 4-Ohm Subwoofer 750W RMS image 6

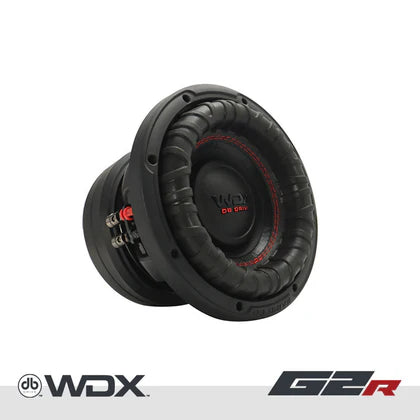

  • DB Drive WDX8G2R.4 8" Dual 4-Ohm Subwoofer 750W RMS image 7

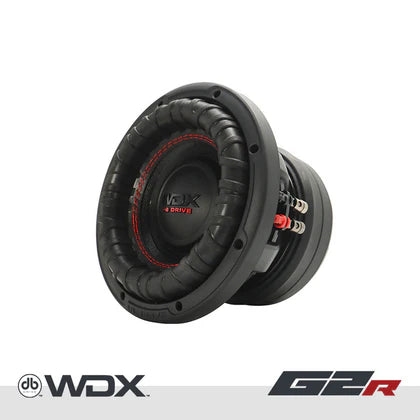

  • DB Drive WDX8G2R.4 8" Dual 4-Ohm Subwoofer 750W RMS image 8

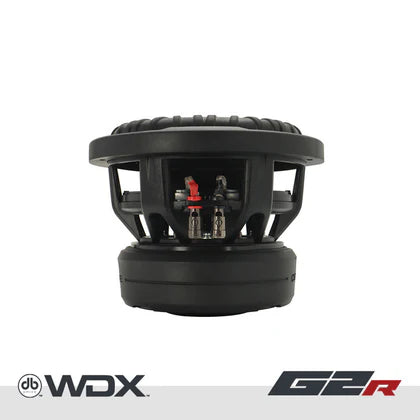

  • DB Drive WDX8G2R.4 8" Dual 4-Ohm Subwoofer 750W RMS image 9
1 10

DB Drive

DB Drive WDX8G2R.4 8-Inch 750W RMS Dual 4-Ohm Subwoofer

DB Drive WDX8G2R.4 8-Inch 750W RMS Dual 4-Ohm Subwoofer

$299.99 USD
$299.99 USD
Sale Sold out
Shipping calculated at checkout.
  • 2.5″ Anodized aluminum high-temperature voice coil
  • Non-pressed paper cone
  • Double-stitched reinforced foam surround
  • Dual poly-cotton dampeners
  • Die-cast aluminum vented basket
  • Rubber gasket trim ring
  • Large gauge compression terminals
  • Protective magnet cover
    Dynamic Power Handling: 1500 Watts
    Nominal Power Handling: 750 Watts
    Impedance: Dual 4Ω Voice Coil
    Resonant Frequency (fs): 39.479 Hz
    D.C. Voice Coil Resistance (Re): 2 x 3.2Ω
    Mechanical Quality Factor (Qms): 3.892
    Electrical Quality Factor (Qes): 0.793
    Total Quality Factor (Qts): 0.659
    Equivalent Air Volume (Vas): 7.051 L
    Mechanical Compliance of Suspension (CMS): 122.833 mm/N
    Mass of Diaphragm/Coil (Mms): 132.307 g
    Force Factor (BL): 16.277
    Sound Pressure Level (SPL): 79.3 dB
    Dimensions
    Outside Diameter: 8.78"/ 223 mm
    Cutout Diameter: 7.36"/ 187.5 mm
    Mounting Depth: 5.55"/ 141 mm
      Designed for true bass enthusiasts, the WDX8G2R.4 subwoofers offer unmatched power and precision. •    Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. •    All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. •    The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. •    Built for Bass: Power handling up to 1500 watts dynamic (750 watts nominal) •    The WDX8G2R.4 sets a new standard for earth-shaking bass. Ready to feel the difference?
