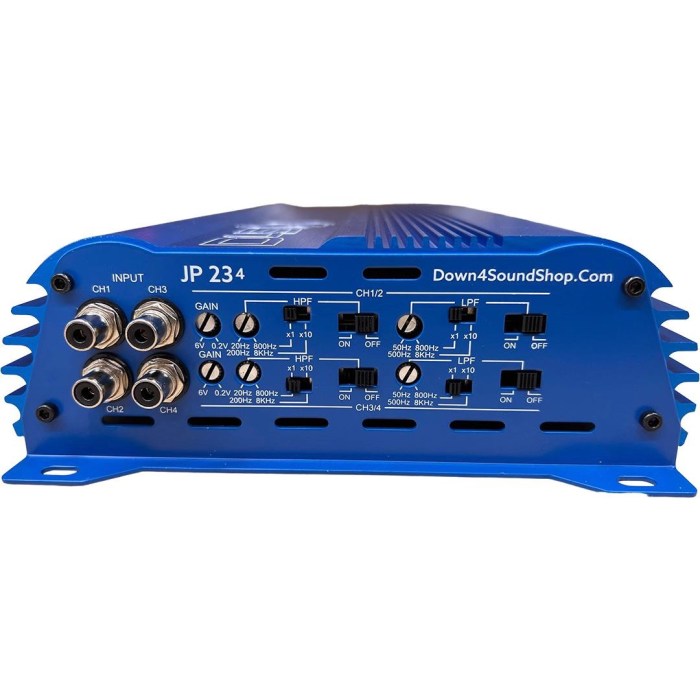

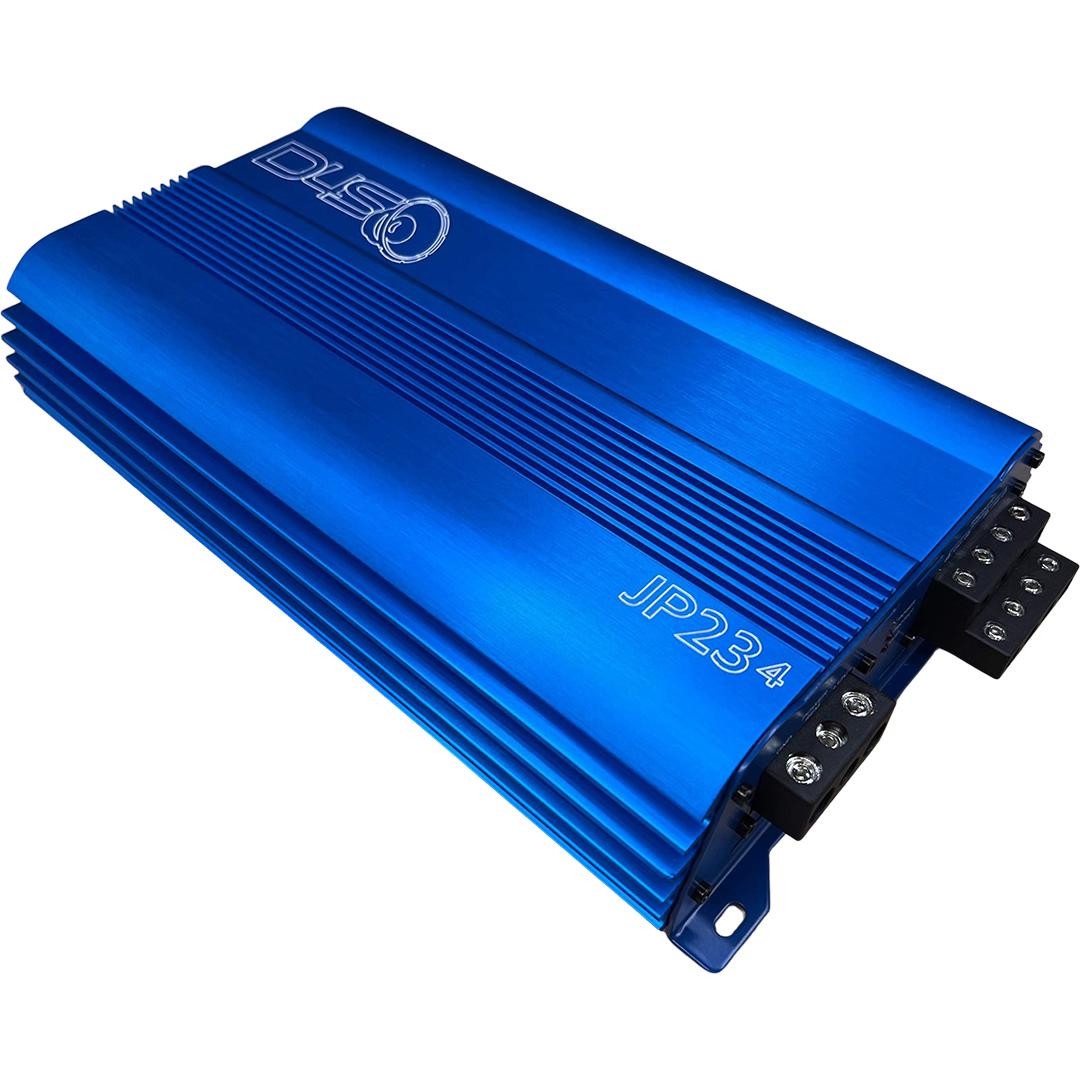

DOWN4SOUND JP234 – BLUE | 2000W 4CH AMPLIFIER

Introducing the Down4Sound JP234 BLUE 4-Channel Amplifier – your gateway to powerful and immersive car audio. With 2000W of power, this amplifier is designed to elevate your audio experience to the next level. The full-range digital multi-channel amplifier offers stability into 2 ohms stereo or 4 ohms bridged configurations. Equipped with a high-speed MOSFET power supply, variable high and low pass filters, and crossover multiply x10, the JP234 BLUE redefines performance. Embrace the Class D design and 4-way protection circuits that ensure your system’s safety and reliability. Certified independent testing by Big D Wiz with SMD Amplifier Dyno guarantees exceptional results. Immerse yourself in superior sound quality with the JP234 BLUE.

Key Features:

• 2000W of power for a dynamic audio experience
• Stable into 2 ohms stereo or 4 ohms bridged configurations
• High-speed MOSFET power supply for reliable performance
• Variable high and low pass filters for customizable sound
• Crossover multiply x10 for versatile audio options
• Class D design for efficient and powerful amplification
• 4-way protection circuits for safety and reliability

Independent Testing Results:

• 4 ohms at 14.4V: 334W RMS – CERTIFIED
• 2 ohms at 14.4V: 425W RMS – CERTIFIED
• Bridged at 2 ohms: 678W RMS – CERTIFIED

Our Ratings:

• RMS POWER: 334W x 4 @ 14.4V – 2 ohms
• RMS POWER: 234W x 4 @ 14.4V – 4 ohms
• BRIDGE POWER: Range 640 – 740W x 2

Specifications:

• Operating Voltage: 9 to 16 Volts
• Signal to Noise Ratio: 95dB <
• Fuse Rating: 120A
• Inputs: 4 GA input on Power Wire, 8 GA input for Speaker Wire
• Dimensions: 11.8 x 7.4 x 2.24 inches
