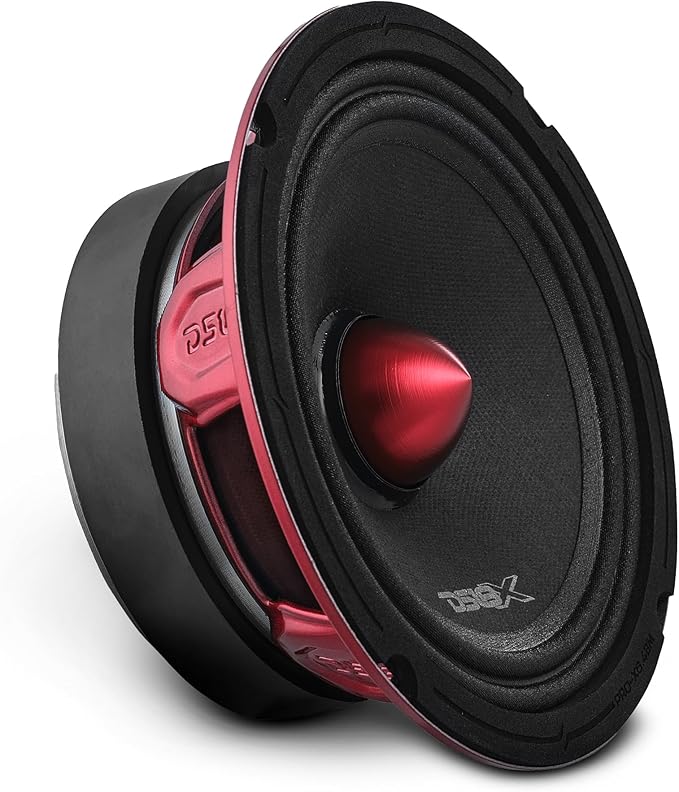

6.5-Inch vs 6x9 Midrange: DS18 PRO-X6.4BM vs PRO-X694BM

The short answer: use the speaker shape the vehicle or custom panel supports properly. The 6.5-inch PRO-X6.4BM is cheaper, shallower, and rated for more RMS power. The 6x9 PRO-X694BM offers more cone area, slightly higher sensitivity, a wider published top end, and a lower recommended high-pass point.

The controversial claim that a 6x9 is always louder because it is bigger ignores power handling, motor design, fitment, and installation. The opposite claim that round speakers always sound better ignores how much usable cone area a well-designed oval driver provides.

These two DS18 models share a PRO-X bullet-midrange approach, four-ohm impedance, 1.5-inch CCAW voice coil, ferrite motor, paper cone, cloth surround, and steel basket. Shape changes the practical job more than the badge.

DS18 6.5-inch vs 6x9 at a glance

Prices and availability shown at publication and can change. Confirm the product page before ordering.

The controversial verdict: factory opening beats speaker mythology

If the vehicle already has a 6x9 opening and enough depth, the PRO-X694BM can use that area without adapting down to a smaller round driver. If the door or pod is built around 6.5-inch locations, forcing an oval into the panel creates fabrication that may deliver no useful benefit.

The 6.5-inch model actually carries the higher published RMS rating, 250 watts versus 200. The 6x9 counters with one decibel more listed sensitivity, response to 12.5 kHz, and a 120 Hz recommended high-pass instead of 140 Hz.

Neither wins every category. The correct driver is the one that seals to a rigid baffle, clears the glass and panel, works with the chosen amplifier, and balances with the rest of the system.

Why the 6.5-inch model wins more custom builds

Round 6.5-inch cutouts are common in aftermarket doors, pods, baffles, and prefab panels. That makes the PRO-X6.4BM easier to repeat across a large system and easier to replace later.

Its 2.58-inch mounting depth is about 0.69 inch shallower than the 6x9. That can be decisive near a window track or shallow factory door.

The $25.01 per-speaker savings also grows quickly. Four speakers save about $100, and eight save about $200 before adapters and fabrication.

Why the 6x9 can be the smarter factory-fit choice

Many trucks and cars use an oval factory opening. Keeping the 6x9 shape can preserve cone area and reduce the need for an adapter that narrows the opening.

The PRO-X694BM includes a grille and lists response to 12.5 kHz with a 120 Hz recommended high-pass. That gives the installer useful bandwidth for a loud daily midrange stage.

Its larger footprint does not guarantee better low bass. It remains a pro midrange and should be protected from sub-bass with an appropriate crossover.

Cone area, sensitivity, and watts are different advantages

More cone area can move more air for the same excursion. Higher sensitivity can create more output from a given input under the stated test. Higher power handling can accept more clean power within thermal and mechanical limits.

Those advantages interact. A larger cone with lower power handling may outperform a smaller cone in one band and lose in another. One catalog number cannot rank the complete result.

Published sensitivity should also be compared carefully. Even within one brand, the installed door and listening angle can change effective output far more than a one-decibel paper difference.

Do not turn a midrange into a subwoofer

Both frequency responses begin at 100 Hz, but DS18 recommends high-pass points above that: 140 Hz for the 6.5 and 120 Hz for the 6x9. The response endpoint is not the same as a full-power crossover recommendation.

Lowering the filter to chase door bass increases excursion and reduces power handling. A dedicated midbass or subwoofer should carry the low-frequency load.

Use a suitable filter slope, set amplifier gains from a clean source, and check the door for air leaks and panel noise. Controlled output lasts longer than impressive distortion.

Dallas installation recommendation

Use the existing factory shape when it provides a rigid, sealed, clear mounting path. Choose the 6.5-inch for shallower clearance, lower cost, and repeatable custom pods. Choose the 6x9 when the oval opening, added area, grille, and bandwidth fit the design better.

Super Car Audio & Tint can remove the panel, measure actual depth with the window down, build or select adapters, verify amplifier load, and set the high-pass crossover for the installed door.

Request Speaker Installation in Dallas

Frequently asked questions

Is a 6x9 always louder than a 6.5-inch speaker?

No. It has more cone area, but output also depends on sensitivity, power, frequency, mounting, crossover, and the number of drivers.

Which DS18 handles more power?

The PRO-X6.4BM 6.5-inch model is rated at 250W RMS versus 200W RMS for the PRO-X694BM.

Which one mounts shallower?

The 6.5-inch model is listed at 2.58 inches deep versus 3.27 inches for the 6x9.

Can I put a 6.5-inch in a factory 6x9 opening?

Usually with a proper adapter, but the adapter must be rigid and sealed. Adapting down may give up some available cone area.

Are these sold in pairs?

No. Both store listings are sold individually, so order two for a left-and-right pair.
