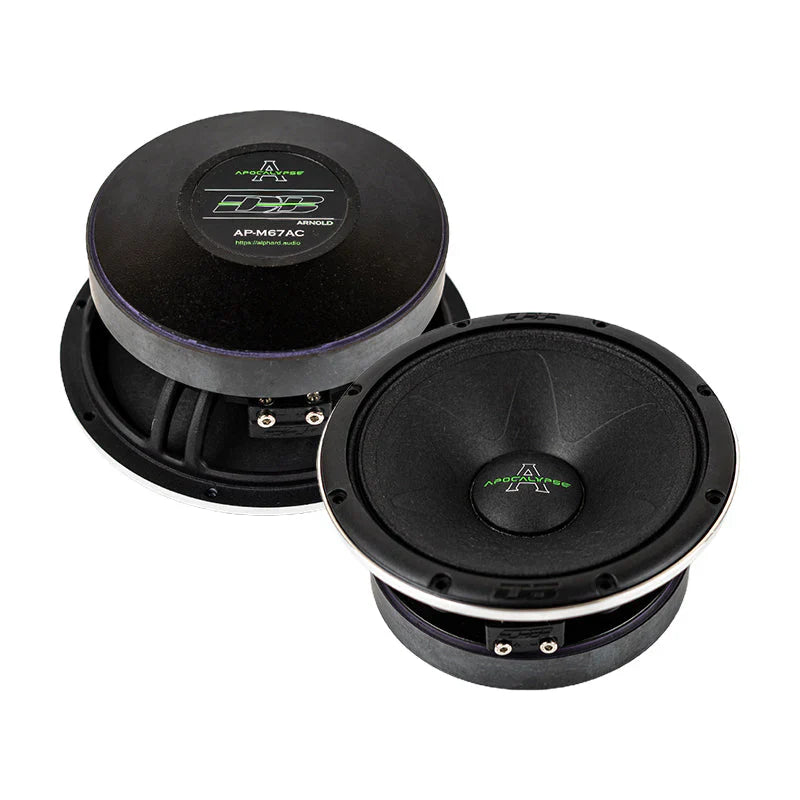

AP-M67AC PRO vs NEO: Same 300W RMS, Very Different Price

The short answer: buy the AP-M67AC PRO if it fits and maximum value is the goal. Buy the AP-M67AC NEO when a shallower, lighter motor is important or the system benefits from its lower published frequency extension. Paying $89 more does not buy another watt of RMS rating.

That makes this one of the best examples of why shoppers should not rank speakers by watts alone. Both pairs are listed at 300W RMS and 600W maximum. Both use a 1.75-inch CCAW voice coil, paper cone, cloth surround, aluminum frame, and four-ohm impedance.

The differences live in the motor and geometry. The PRO uses ferrite, reaches 3.1 inches deep, and lists response from 160 Hz to 15 kHz. The NEO uses neodymium, is about 2.66 inches deep, and lists 110 Hz to 11 kHz.

AP-M67AC PRO vs NEO at a glance

Prices and availability shown at publication and can change. Confirm the product page before ordering.

The controversial verdict: the NEO premium buys fitment, not watts

If both drivers fit comfortably and the system will cross them above 160 Hz to dedicated tweeters, the PRO is difficult to beat. It offers the same published power handling and nearly identical sensitivity for substantially less money.

The NEO earns its price in tight doors and large custom arrays. Saving about 0.44 inch of mounting depth can prevent interference with a window track or eliminate a thicker spacer that pushes the grille into a door panel.

Its lower published response endpoint may also help a system cross lower, but that must be proven in the installed location. A number on a spec sheet does not guarantee clean output at full power near that number.

Why the AP-M67AC PRO is the value winner

The PRO gives high-output builders a cast-frame, 1.75-inch-coil midrange pair at $209.99. When the door has enough depth, its heavier ferrite motor is not automatically a disadvantage.

Its listed response extends higher than the NEO model, reaching 15 kHz. Dedicated tweeters are still recommended for dispersion and upper detail, but the broader high-frequency specification can make crossover planning flexible.

The $89 savings per pair compounds in multi-pair systems. Four pairs create a $356 difference, enough to affect amplifier, electrical, deadening, or fabrication decisions.

Why the AP-M67AC NEO exists

Neodymium allows a strong motor in a compact package. That is useful when the glass, regulator, factory brace, or door panel leaves very little room behind or in front of the speaker.

Custom doors can carry several drivers. Reducing motor weight at every location makes the complete assembly easier to support and can reduce stress on hinges and fabricated panels.

The NEO also lists response down to 110 Hz. In a carefully built and protected door, that can support a lower handoff than the PRO's 160 Hz specification. It does not make the driver a subwoofer or excuse an unsafe crossover.

Why equal RMS ratings do not mean equal performance

RMS power is a thermal guideline, not a complete performance score. Two 300W speakers can have different moving mass, magnetic strength, impedance curves, resonance, efficiency, frequency response, and mechanical limits.

Here the sensitivity figures are nearly identical, 102 versus 102.2 dB. That small published gap should not be the buying decision. Fit, bandwidth, system weight, and price are more meaningful.

The final amplifier should be selected after the number of drivers and wiring configuration are known. Four-ohm speakers can create very different amplifier loads depending on how many are placed on each channel.

Crossover strategy for either model

Use a high-pass filter to protect a pro midrange from sub-bass and excessive excursion. The safe point depends on the door or pod, desired volume, filter slope, amplifier power, and how much output the driver is asked to produce.

Use low-pass filtering or a proper passive or active crossover to hand off to tweeters. Letting a midrange and tweeter overlap without control can create harshness, cancellation, and uneven response.

Start conservatively, tune with measured signal, and listen for mechanical stress. The goal is repeatable output, not one impressive minute followed by a damaged coil.

Dallas installation recommendation

If the AP-M67AC PRO clears the glass and panel, it is our value recommendation. If fitment is tight, the door carries several drivers, or the design needs the NEO model's packaging, the extra cost has a practical purpose.

Super Car Audio & Tint can mock up speaker depth, confirm the cutout and spacer, calculate the amplifier load, and set crossovers for the finished doors rather than tuning from a catalog number.

Request Speaker Installation in Dallas

Frequently asked questions

Are the PRO and NEO both 300W RMS?

Yes. The store and manufacturer specifications list both pairs at 300W RMS and 600W maximum.

Is the NEO significantly more sensitive?

No. The listed sensitivity difference is only 0.2 dB, which is not a practical reason by itself to pay the premium.

Which speaker is shallower?

The AP-M67AC NEO is listed around 2.66 inches deep versus 3.1 inches for the PRO.

Does the NEO play bass?

It lists lower frequency extension, but it remains a midrange. It should be high-passed and integrated with proper midbass or subwoofer support.

Which is better for a large custom door?

The NEO can be easier because its motors are more compact and lighter. The PRO can save substantial money when the structure and clearance can handle ferrite drivers.
